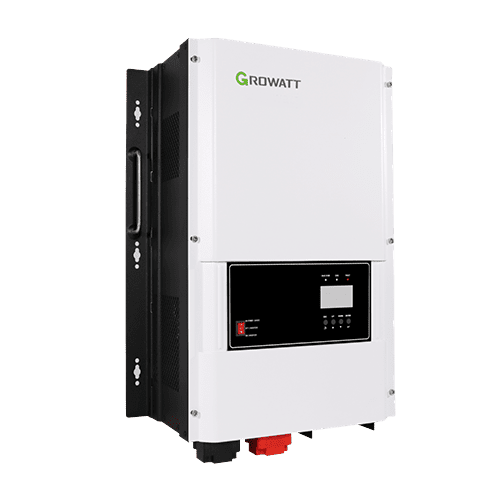

A multifunctional off grid solar inverter, integrated with an MPPT solar charge controller, a low frequency pure sine wave inverter and a UPS function module in one machine, which is perfect for off grid backup power and self-consumption applications. The optional WiFi/GPRS module is a plug-and-play monitoring device to be installed on the inverter. With the device, users can monitor the status of the PV system from a mobile phone or from the website anytime, anywhere.

Product Specifications

• Power rating: 8,000W
• AC output voltage range: 220V/230V/240VAC (+/-10% RMS)
• AC output frequency: 50Hz/60Hz
• Maximum PV charge current: 120A
• DC voltage: 48V
• Maximum PV array power: 7000W
• MPPT operating voltage: 60 – 145Vdc
• Maximum AC input charge current: 70A
• Supported battery types: Lithium-ion, Lead-acid
• Protection: Overload, Output short circuit.
• Dimension: 380/650/255mm
• Weight: 64kg
